20W High Voltage DC-DC Converter – DDC15-150024-D
- 20W High Voltage DC-DC Converter
- Wide DC input range: 200–1500V
- 24V DC output with ±2% regulation
- 700mA–1A peak output capability
- 2500VDC isolated design
- Typical efficiency above 85%
- Operating temperature: -40°C to +71°C
- IP54 protective cover with industrial ABS enclosure
- DIN rail mount with 7.62 pitch input and output terminals
- Ideal for solar power monitoring, solar inverters and solar power plants
Description
HIGH VOLTAGE DC-DC CONVERTER
20W High Voltage DC-DC Converter
The PROXIMWORLD DDC15-D Series DDC15-150024-D is a compact high-voltage DC-DC converter designed for applications requiring conversion from a wide DC input range of 200V to 1500V to a regulated 24V DC output. With isolated construction and an industrial DIN rail mounting design, it is suitable for demanding solar and high-voltage DC applications.
20W Power
200–1500V DC Input
24V DC Output
2500VDC Isolation
DIN Rail Mount
PRODUCT OVERVIEW
Compact High-Voltage DC-DC Power Conversion
The PROXIMWORLD DDC15-D Series
features a wide DC input range and is designed for high-end applications such as solar power monitoring, SCADA systems, solar inverters and solar power plants.
The DDC15-150024-D provides a regulated 24V DC output with ±2% output regulation and supports 700mA to 1A peak output. The isolated architecture provides 2500VDC isolation between input and output.
Its compact industrial enclosure, DIN rail mounting arrangement and IP54 protective cover make it suitable for installation in industrial and solar power equipment where space, reliability and high-voltage operation are important.
KEY PERFORMANCE
Designed for High-Voltage DC Applications
01
Wide Input Voltage Range
Supports a wide DC input range from 200V to 1500V, making the converter suitable for high-voltage DC systems.
02
Regulated 24V Output
Provides a 24V DC output with ±2% regulation for stable power delivery to connected equipment.
03
Galvanic Isolation
Designed with 2500VDC isolation between input and output for high-voltage application requirements.
04
High Efficiency
Typical efficiency is specified above 85% during
laboratory testing conditions.
TECHNICAL DATA
Technical Specifications
INDUSTRIAL DESIGN
Installation, Cooling & Safety
01

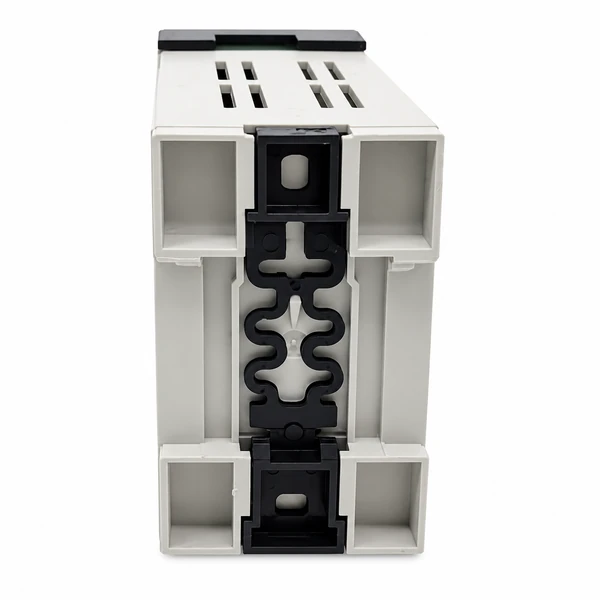

DIN Rail Installation
Designed for 35mm DIN rail mounting with 7.62 pitch terminals for input and output connections.
02
Natural Air Cooling
Convection and natural-air cooling provide a simple thermal management approach for continuous operation.
03
Industrial Enclosure
Compact industrial ABS housing with an IP54 protective cover for suitable installation environments.
04
Safety & EMC
Designed with DC overload and over-voltage protection
and specified for ESD-noise compliance as indicated.
APPLICATION AREAS
Applications
Designed for high-voltage DC power conversion in solar,
monitoring, inverter and renewable energy applications.
DDC15-150024-D
High-Voltage DC-DC Conversion for Solar Applications
With a wide 200–1500V DC input range, regulated 24V output,2500VDC isolation, DIN rail mounting and compact industrial
construction, the DDC15-150024-D is designed for demanding solar and high-voltage DC applications.
Specifications can be customized as per buyer requirements.
