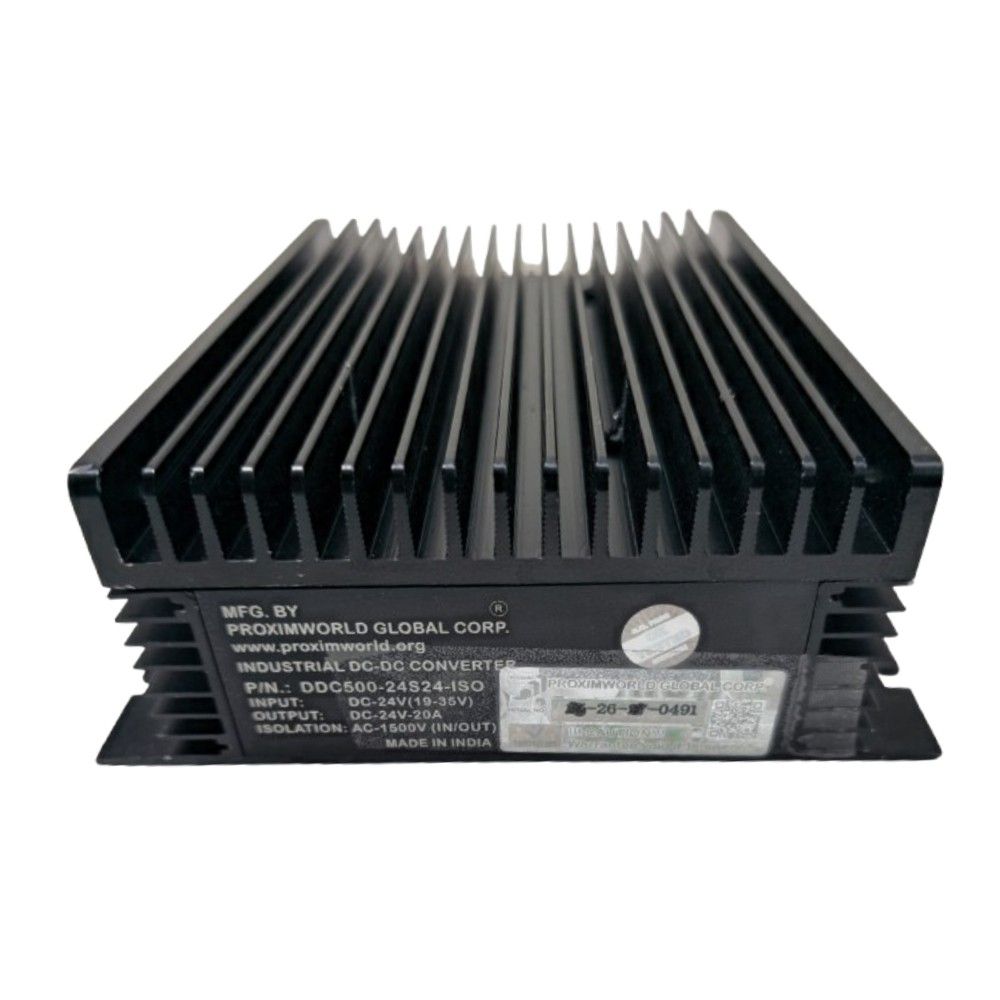

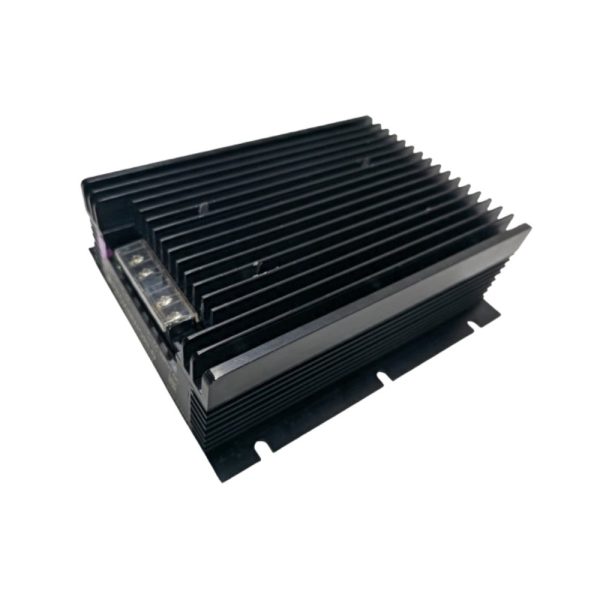

24VDC TO 24VDC-1~20A DC TO DC CONVERTER
High-capacity Isolated 24VDC to 24VDC Converter designed for voltage stabilization and circuit protection. Delivering an adjustable output of 1 to 20A, this industrial power module ensures a clean, regulated 24V signal. Features a versatile Panel, Chassis, and DIN-Rail mount design for seamless integration into complex industrial systems.
Description
Product Specifications
This 24VDC to 24VDC DC-DC Converter serves as a vital component for industrial systems requiring a stable, noise-free power supply. Unlike standard step-up or step-down converters, this unit provides a 1:1 regulated output, making it the perfect solution for protecting sensitive electronics from voltage fluctuations and electrical interference in 24V networks.
Key Features & Benefits
Isolation: Acts as an electrical firewall, providing Isolated protection that prevents ground loops and blocks high-frequency noise from traveling between the input and output stages.
High Current Capability: Engineered to support heavy loads with a wide output current range of 1A to 20A, making it suitable for high-torque motors, large PLC arrays, and industrial actuators.
Flexible Industrial Mounting: Built for the real-world factory floor, this unit supports DIN-Rail, Panel, and Chassis mounting, allowing it to fit into standard control cabinets or custom machinery builds.
Power Conditioning: Ensures your downstream 24V equipment receives constant, stable voltage even if the input battery or power source experiences drops or surges.
Technical Specifications
| Feature | Specification |
|---|---|
| Input Voltage | 24VDC |
| Output Voltage | 24VDC (Regulated) |
| Output Current Range | 1A ~ 20A |
| Isolation | DC to DC (Isolated) |
| Mounting Options | DIN-Rail / Panel / Chassis Mount |
Applications
Ideal for use in Railway Electronics, Marine Systems, and Automation Control Panels where isolating a 24V branch circuit is necessary to prevent system-wide failures or to maintain signal integrity for sensitive sensors.
FAQs
What efficiency can be expected from a 120A industrial DC to DC converter under full load conditions?
A high-quality industrial 24VDC to 24VDC-120A DC to DC converter generally achieves efficiencies between 90% and 96% under rated load conditions using synchronous MOSFET switching and optimized magnetic design.
Is the converter suitable for telecom and data center power redundancy architectures?
Yes. The converter supports telecom-grade DC bus architectures and can be integrated into N+1 redundant power systems, battery backup systems, and rectifier-based DC distribution networks commonly used in telecom and edge computing infrastructure.
Is the converter suitable for battery charging and lithium battery systems?
Yes. The converter can be integrated into lithium battery charging systems, BMS-controlled architectures, and energy storage systems requiring stable regulated DC power.
Why is a 24VDC TO 24VDC-120A DC TO DC converter preferred in critical industrial systems?
These converters provide highly stable, isolated, and regulated power for mission-critical industrial systems where downtime, voltage instability, or electrical noise can cause operational failures and equipment damage.
How does the converter handle inductive loads such as motors and solenoids?
Industrial converters are designed with dynamic response compensation and transient current handling capability to support inductive loads while maintaining voltage stability during sudden load changes.
Additional information
| DC Input Voltage | 24VDC |
|---|---|
| Mount Type | Chassis Mount, Din-rail Mount, Panel Mount |
