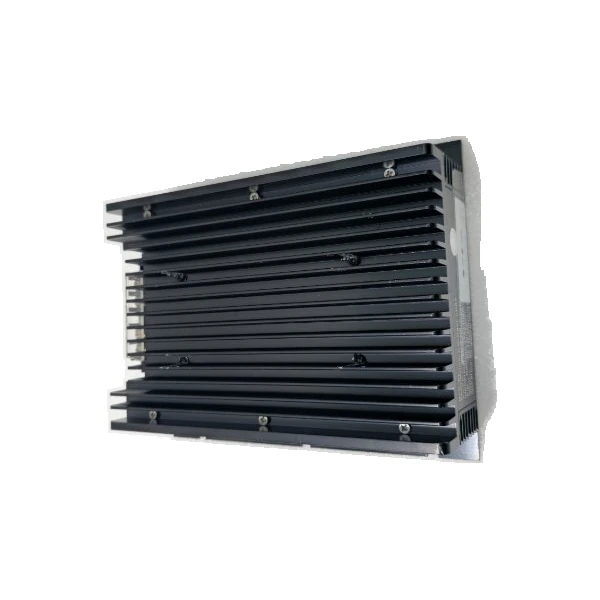

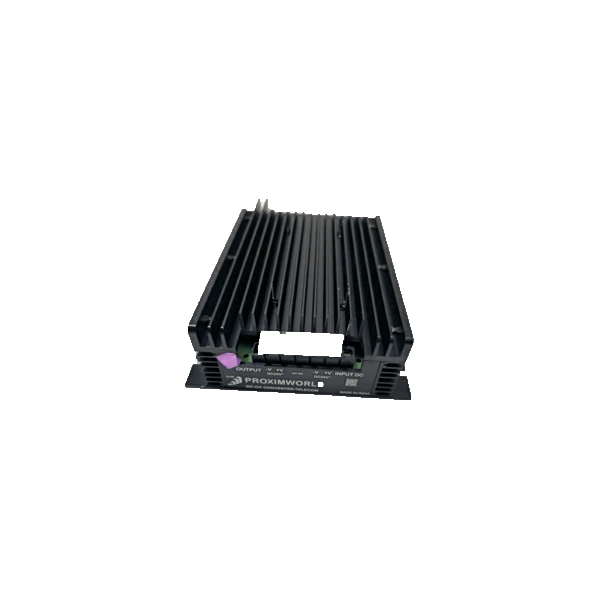

580W Railway DC-DC Converter – DDC600R-110-CMC
The PROXIMWORLD’S DDC50R Railways Series DC-DC Converter features wide input range, high density power in less foot-prints, Designed for Critical applications like EV, Telecom, Railways Automation use. With peak 52W power, These DC-DC converter are compact and designed for High-end transport application.
Technical Description:
- Input voltage range DC110V (40-160V)
- Output voltage: DC +5V/12V/19V/24V/48V
- Total Power: 580W Peak 600W*
- Isolation: Between Input and output DC1500*
- Operation: Work in continuous mode.
- MTBF: 100k hrs min. MIL-HDBK-217F(25℃)
- Efficiency: >91% typical during lab test.*
- Working temperature: -30°C ~ 71°C.
- Product size 270*200*70mm, Approx weight 600gr.
- Compliance to EN61000, IEC62368 and EN50155.
- Protections: DC high-Low, Short circuit, Overload inbuilt.
- Comply Environment: EN50155 Class A meets transport vibrations.
- Cooling: Convection, Fan cooling may require if 24×7 application
- Use: Railway, Transport, Metro rail, High speed railway application.
- Converter all side sealed IP65 with Aluminium Mounting Plate.
- High grade 9.50mm pitch terminals for IN/OUT connections.
Description
580W Railway DC-DC Converter
DDC600R-110-**-CMC
High-Power & Reliable DC-DC Power Conversion Solution for Railway,
Metro Rail, Transportation, EV & Telecom Applications
The PROXIMWORLD DDC600R Railway Series DC-DC Converter is a high-power, high-density DC power conversion solution designed for demanding railway and transportation applications. Its rugged construction, wide input range and efficient thermal design make it suitable for critical systems where reliable power conversion is essential.
With a rated power of 580W and up to 600W peak power, this converter supports multiple output voltage configurations including +5V, +12V, +19V, +24V and +48V.
It is suitable for railway electronics, railway automation, metro rail, transportation and other high-demand applications.
Technical Specifications
INPUT VOLTAGE
DC 110V
Input Range: 40–160VDC
OUTPUT VOLTAGE
+5V / +12V / +19V
+24V / +48V configurations
TOTAL POWER
580W
Peak Power: 600W
ISOLATION
DC 1500V
Between input and output
OPERATING MODE
Continuous Operation
Designed for continuous-duty applications
MTBF
100K Hours Minimum
MIL-HDBK-217F @ 25°C
EFFICIENCY
>91%
Typical during lab testing
OPERATING TEMPERATURE
-30°C to +71°C
Wide operating temperature range
PRODUCT SIZE
270 × 200 × 70 mm
Rugged high-power construction
APPROX. WEIGHT
600 g
Approximate unit weight
Railway & Transportation Applications
The DDC600R series is designed for high-end transportation applications requiring high power output, stable operation and robust construction. Its wide input range makes it suitable for demanding railway power environments.
Railway Systems
Railway Automation
Metro Rail
Transportation
EV Applications
Telecom
Protection & Reliability
✓ DC High / Low Protection
Built-in input voltage protection
Built-in input voltage protection
✓ Short Circuit Protection
Protection against short-circuit conditions
Protection against short-circuit conditions
✓ Overload Protection
Built-in overload protection
Built-in overload protection
✓ IP65 Sealed Converter
Enhanced environmental protection
Enhanced environmental protection
Railway Standards & Construction
The DDC600R series is designed for transportation applications and complies with EN61000, IEC62368 and EN50155 requirements. The design supports demanding railway environments
and transportation vibration conditions.
The converter features a sealed IP65 enclosure with an aluminium mounting plate for robust installation. High-grade 9.50 mm pitch terminals provide secure input and output connections.
Cooling & Installation
The converter uses convection cooling under normal operating conditions. For 24×7 applications or installations with higher thermal loads, fan cooling may be required depending on the application and installation environment.
Key Features
580W Rated Power
Up to 600W peak power for high-demand applications.
Multi-Output
Supports +5V, +12V, +19V, +24V and +48V configurations.
High Efficiency
Typical efficiency greater than 91%.
Rugged Construction
Aluminium mounting plate for demanding railway environments.
Customization Available
Specifications can be changed, customized or configured according to specific application requirements and buyer requests. Contact PROXIMWORLD for application-specific technical support and configuration.
