Product Specifications

Key Technical Features

• Wide Input Voltage Versatility: Available in two distinct input ranges to suit your power architecture:

  • 8V to 37V DC: Perfect for 12V and 24V nominal systems.

  • 17V to 76V DC: Optimized for 48V telecommunication and industrial grids.

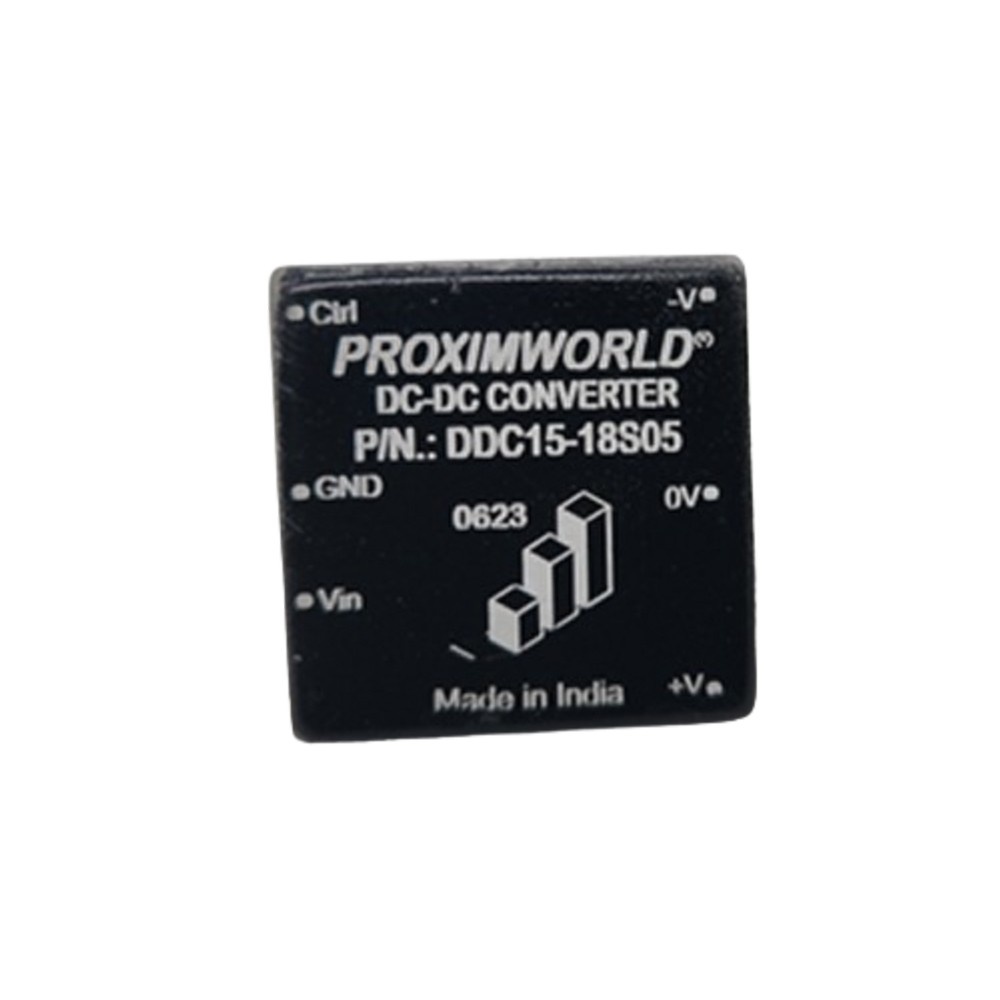

• Precision 5V Output: A step down  buck converter delivers a consistent 15W of power, ensuring your sensitive microcontrollers, sensors, and logic gates receive clean, noise-free energy.

• Isolation: Protects your downstream components from high-voltage surges and ground loops, enhancing overall system reliability and safety.

• High Efficiency & Thermal Management: Advanced switching topology reduces heat dissipation, allowing for a compact form factor without sacrificing performance.

Mounting & Form Factor Options

We understand that every enclosure is different. This converter is available in three primary mounting styles:

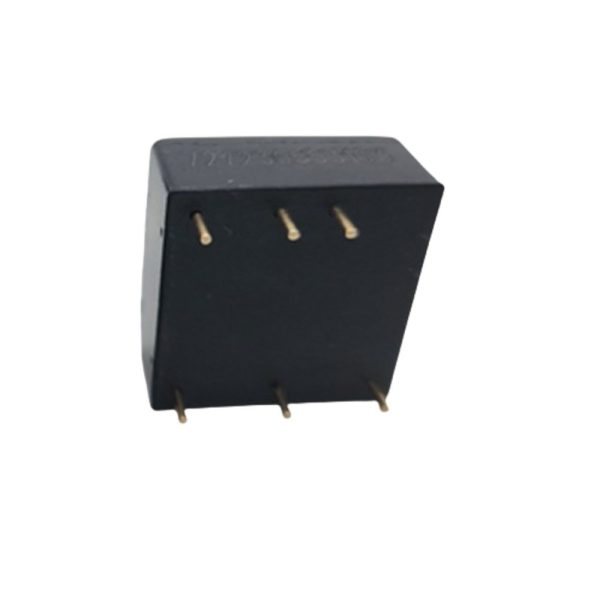

1. PCB Mount: Compact pins for direct soldering onto your circuit board—ideal for space-constrained designs.

2. Chassis Mount: Featuring rugged screw terminals for secure integration into control panels or metal enclosures.

Built-In Protection Suite

Safety is not an afterthought. The IDC15 series includes a comprehensive protection layer:

• Short-Circuit Protection (SCP): Automatic recovery after fault removal.

• Over-Current Protection (OCP): Limits output current to prevent hardware damage.

• Over-Voltage Protection (OVP): Clamps the output to protect 5V logic circuits.

• Under-Voltage Lockout (UVLO): Prevents the device from operating during “brown-out” conditions to protect battery health.

Ideal Applications

• Industrial Automation: Powering PLC modules and industrial HMI displays.

• Transportation: Ideal for 12V/24V vehicle electronics and fleet management systems.

• Renewable Energy: Voltage regulation for solar-powered IoT sensors and battery monitoring.

• Telecommunications: Reliable 48V to 5V step-down for networking hardware.
