Technical Specifications

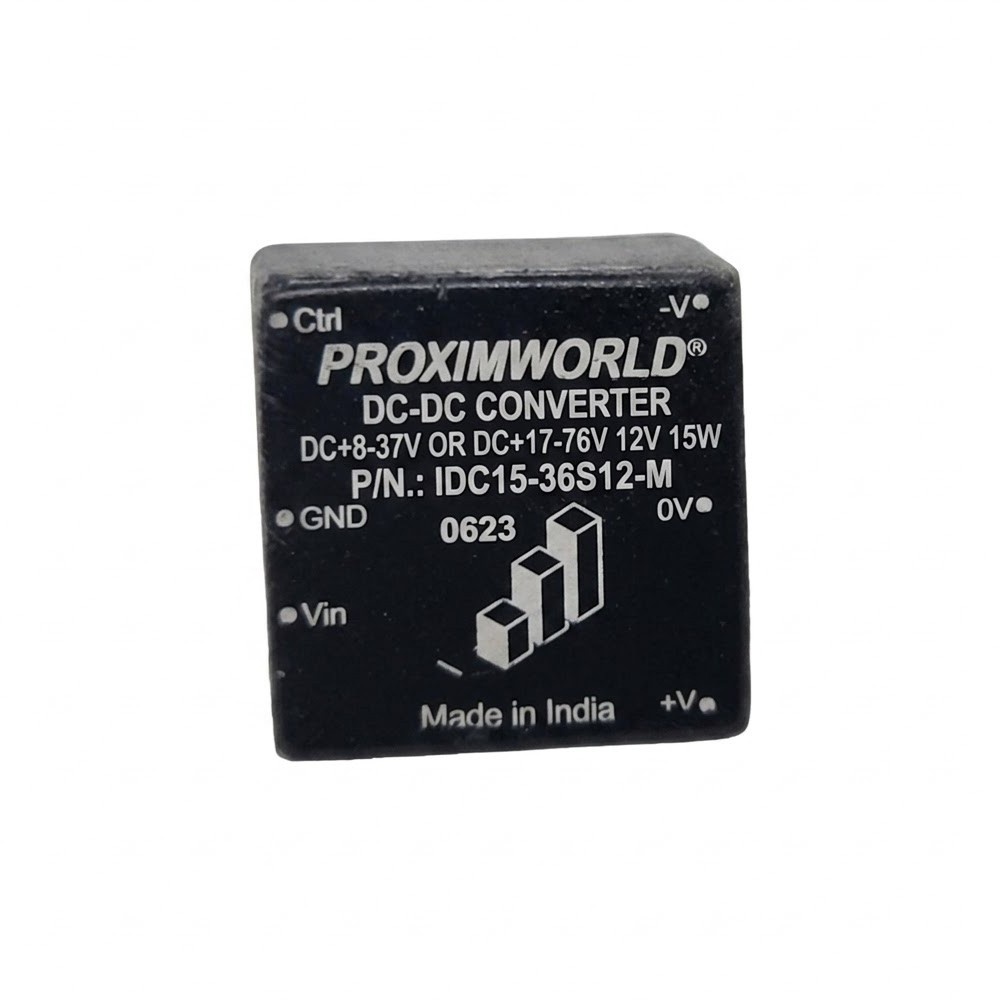

IDC15 Series 12V Converter is a robust power management solution designed to provide clean, isolated power in electrically noisy environments. This 15W module is an essential component for any system requiring a stable 12V rail from a varying DC source, such as battery banks or industrial power buses.

Equipped with True Galvanic Isolation, the IDC15 physically separates the input and output circuits. This prevents ground loop interference and shields your expensive downstream hardware from high-voltage transients and input spikes. Its high switching frequency (up to 2MHz) allows for a compact 25x25x12mm footprint, saving critical space on your PCB while maintaining an impressive 92% efficiency.

Whether you are integrating it into a PCB (Through-Hole) or requiring a Chassis Mount setup for a control panel, this converter’s versatile design meets both needs. It includes a full protection suite, featuring under-voltage lockout, thermal shutdown, and short-circuit protection to ensure long-term reliability.

Features:

• Stabilized 12V Output: Maintains constant 12V even if input voltage fluctuates significantly.

• Compact Footprint: High power density in a small 25mm² area.

• Rugged Protection: Built-in safeguards against over-current and thermal overload.

• Isolated Performance: Eliminates ground-related noise for precision electronics.

Applications

• Industrial Automation: Powering 12V PLC modules, industrial displays, and HMI units.

• Automotive Electronics: Providing stable 12V for diagnostic tools and tracking systems in 24V or 48V vehicles.

• Telecommunications: Converting 48V DC bus power to 12V for localized networking gear.

• Marine Systems: Reliable power regulation for navigation and communication equipment on boats.

• Solar Power Systems: Regulating 12V output from solar-charged battery banks for IoT sensors and gateways.
