Product Overview

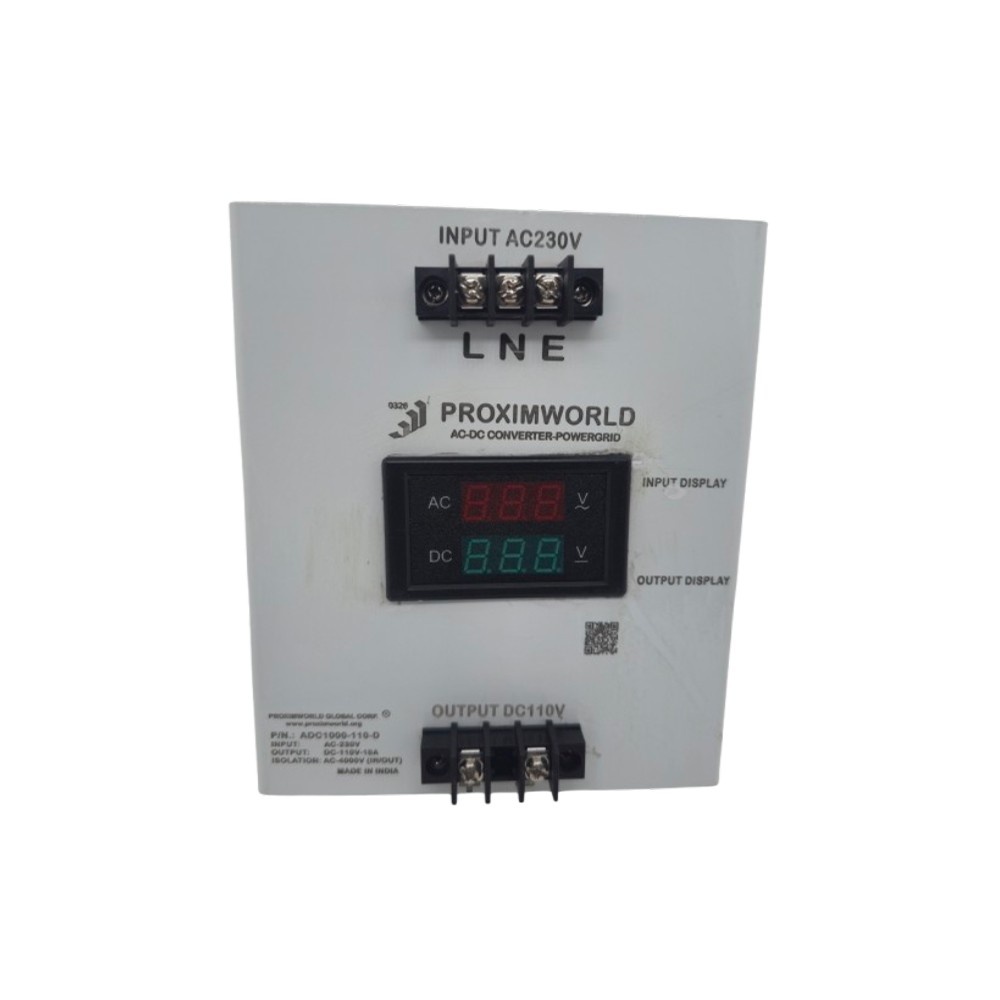

The Proximworld ADC series is a high-performance AC-to-DC Power Grid Converter designed for reliability in demanding environments. This specific unit (P/N: ADC1000-110-D) provides a seamless bridge between standard AC mains power and specialized 110V DC industrial equipment. It is engineered for versatility, offering various mounting options including Panel, Chassis, and Rack Mount configurations.

Key Technical Specifications

• Input Voltage: 230V AC (Single Phase, L-N-E terminal).

• Output Voltage: Regulated 110V DC.

• Maximum Current: 10 Amps (Operating range 1~10A).

• Power Capacity: Scalable design supporting loads from 150W up to 1100W/1200W.

• Isolation Protection: High-level AC-4000V (IN/OUT) isolation to protect sensitive downstream components from surges.

Features & Construction

• Real-Time Monitoring: Equipped with a built-in dual-color digital display. The top red LED shows the Input AC Voltage, while the bottom green LED monitors the Output DC Voltage for immediate status verification.

• Industrial Durability: Housed in a heavy-duty metal chassis designed for heat dissipation and long-term stability.

• Safety First: Features dedicated terminals for Line (L), Neutral (N), and Earth (E) to ensure electrical safety and grounding.

• Ease of Connection: Heavy-duty screw terminals for both input and output ensure secure, vibration-resistant wiring.

Typical Applications

• Industrial Automation: Powering DC motors, solenoids, and relays.

• Testing & Labs: High-voltage DC bench power for electrical testing.

• Power Plants: Battery charging systems and control panel power supplies.

• Infrastructure: Powering DC-based lighting or signaling systems.
